DESIGNED TO BE A MULTIPURPOSE FRAME, WITH A SHAPE SUITABLE FOR ALL KINDS OF USES, FROM YOUR DAILY COMMUTE TO THE CITY TO MEETING ALL THE MOST DEMANDING RIDER’S NEEDS REGARDING COMPETITIONS AND TRAINING. LIGHTWEIGHT, STIFF, HIGH CLASS AND COMFORT. THE LOS ANGELES IS DOSNOVENTA’S TOP-SELLER.
| COLOR | TRAFFIC WHITE MATT |
| FRAME | COLUMBUS AIRPLANE TUBING . 7005-T6 TRIPLE BUTTED ALLOY |
| FORK | FULL CARBON FORK . TAPERED 1-1/8” . RAKE 45MM . 700X28C MAX |
| HEADSET (included) | COLUMBUS COMPASS . 1-1/8" CARBON |
| SEAT CLAMP | COLUMBUS Ø32,5mm |
| BB | BSA 68MM |
| SEAT TUBE | 27.2 Ø |
| GROUND CLEARANCE | 290MM |
| TIRE CLEARANCE | 700X32C MAX |
| FRAME WEIGHT | 1470 GR (M SIZE) |
| FORK WEIGHT | 410 GR |

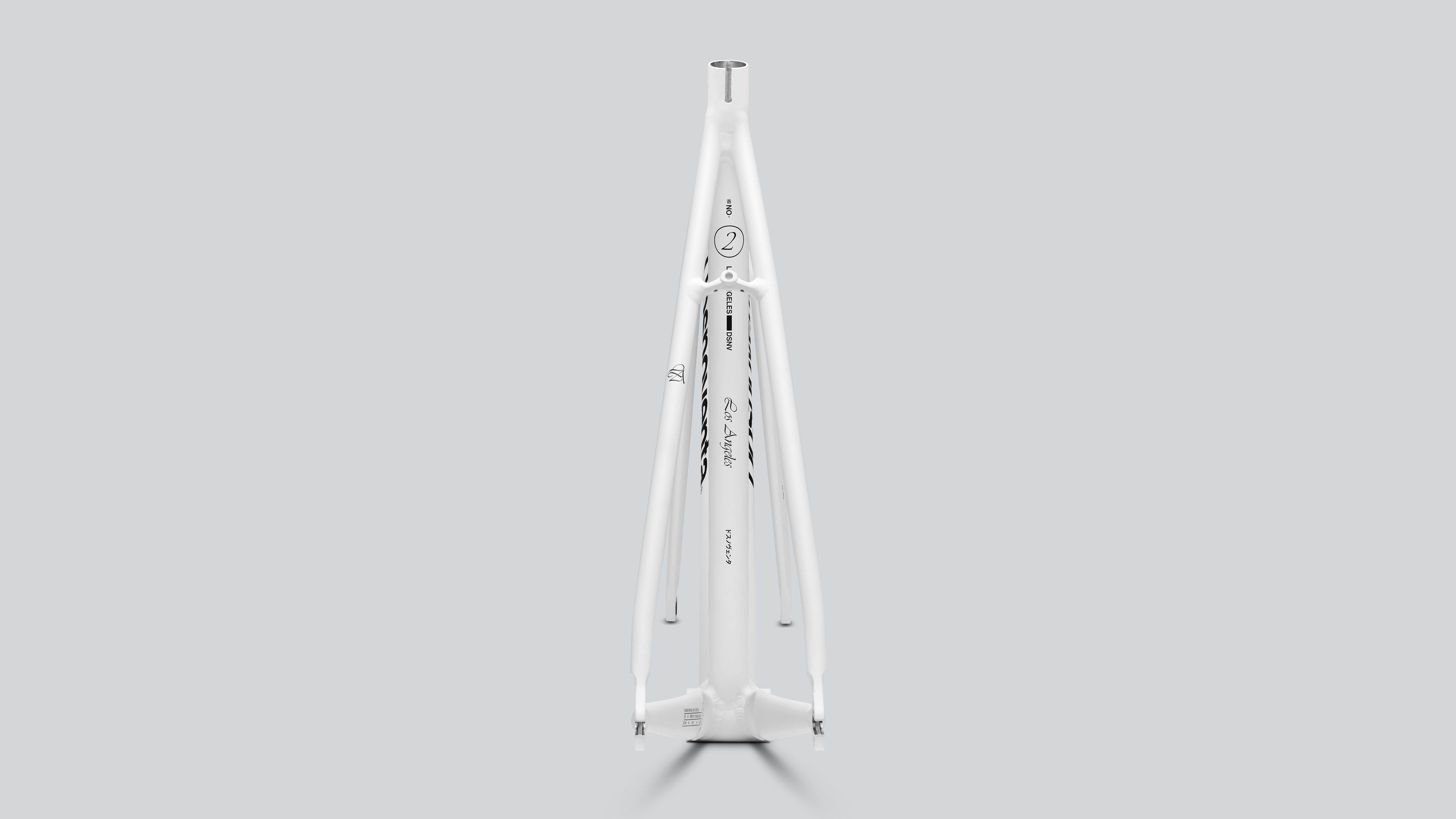

DOSNOVENTA®02 LA / TRAFFIC WHITE FRAMESET
THE LOS ANGELES, THE TOP-SELLER DOSNOVENTA FRAME SET. LIGHTWEIGHT, STIFF, HIGH CLASS AND COMFORT
🔴 THIS PRODUCT SHIPS IN APRIL.
$1,090.00 / Coming soon
| S | M | L | |
|---|---|---|---|
| RIDER HEIGHT | 154CM - 170CM | 171CM - 182CM | 183CM - 192CM |
| Seat Tube (Center to Center) | 460 | 500 | 540 |
| Seat Tube (Center to Top) | 500 | 540 | 580 |
| Head tube length | 110 | 140 | 180 |
| Effective top tube length | 510 | 535 | 560 |
| Head tube Angle | 73.5 | 73.5 | 73.5 |
| Seat tube angle | 75 | 75 | 75 |
| Stack (mm) | 481 | 515 | 553 |
| Reach (mm) | 389 | 396 | 411 |
| BB Drop | 41 | 41 | 41 |
| Chainstay Length | 382 | 382 | 382 |
| Bottom Braket | 290 | 290 | 290 |
