THE MOST AGGRESSIVE SHAPE OF ALL DOSNOVENTA® FRAMES. THANKS TO ITS PURSUIT GEOMETRY, IT WILL TAKE YOU TO THE NEXT LEVEL. COMPETITIVE, FAST, LIGHT, STIFF, REACTIVE AND VERY UNIQUE. SINCE 2012, THE DETROIT FRAME HAS BEEN THE CHOICE OF MANY PRO RIDERS AROUND THE WORLD.
| COLOR | JET BLACK GLOSS |
| FRAME | COLUMBUS AIRPLANE TUBING . 7005-T6 TRIPLE BUTTED ALLOY |
| FORK | FULL CARBON FORK . TAPERED 1-1/8” . RAKE 45MM . 700X28C MAX |
| HEADSET (included) | COLUMBUS COMPASS . 1-1/8" CARBON |
| BB | BSA 68MM |
| SEAT TUBE | 27.2 Ø |
| GROUND CLEARANCE | 290MM |
| TIRE CLEARANCE | 700X28C MAX |
| FRAME WEIGHT | 1450 GR (M SIZE) |
| FORK WEIGHT | 410 GR |

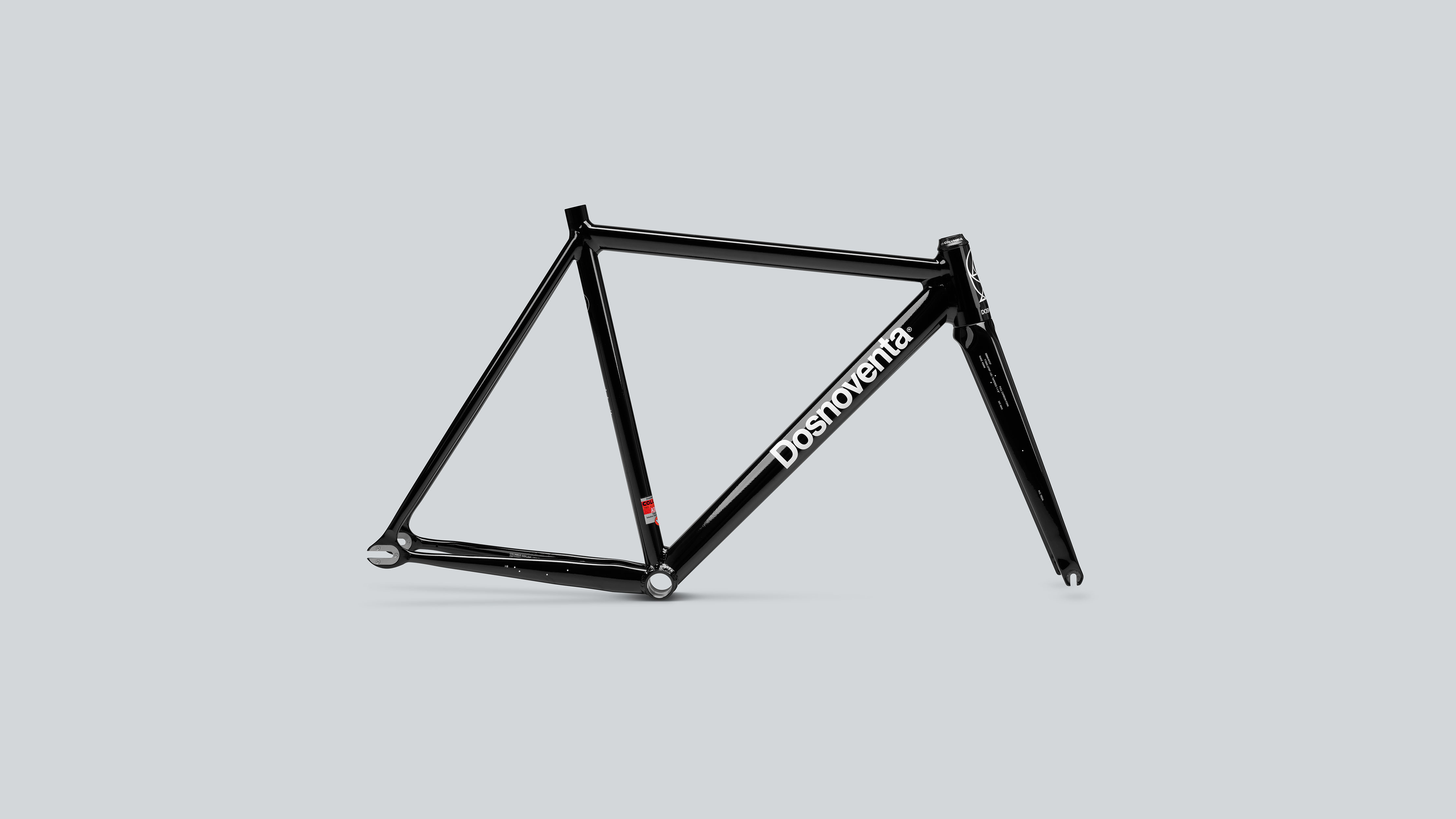

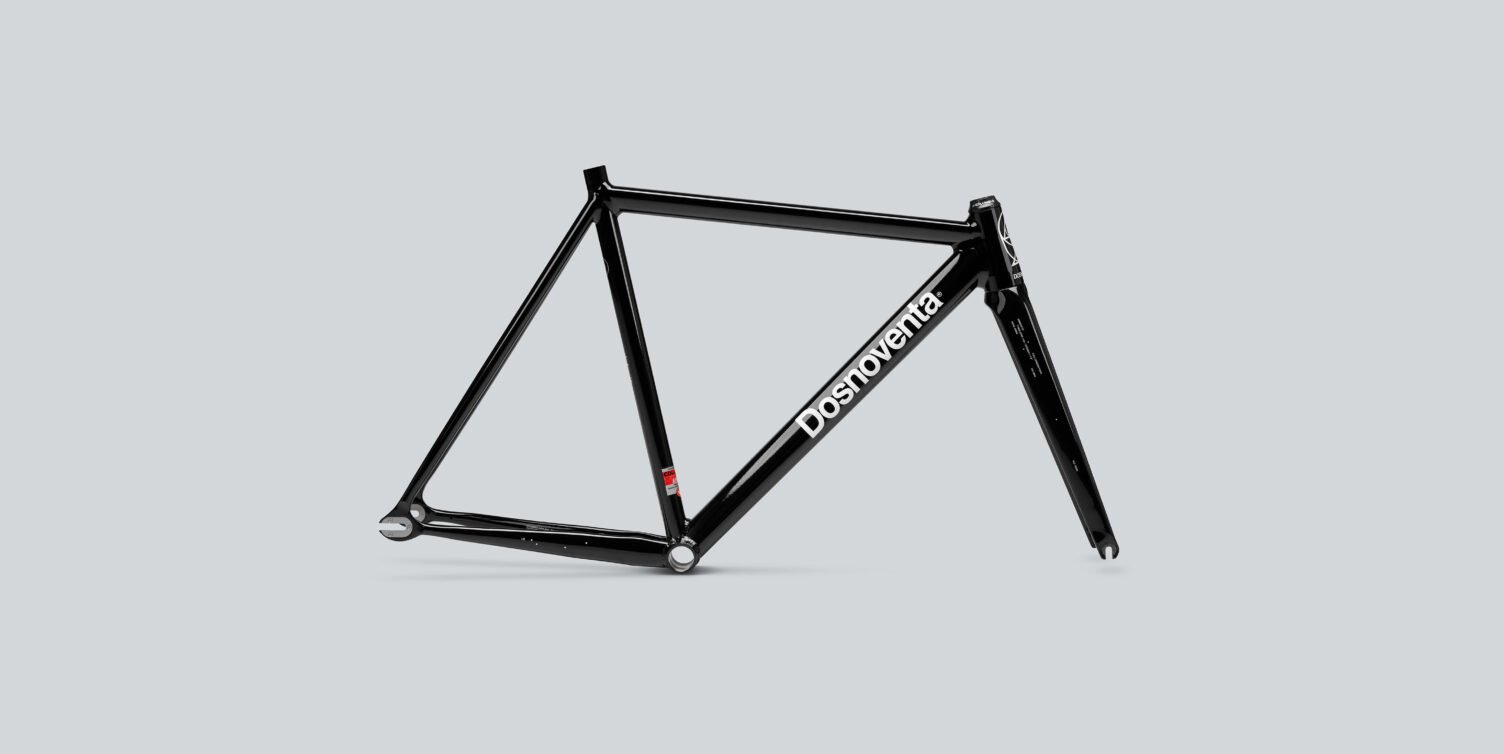

DOSNOVENTA®03 DET / JET BLACK FRAMESET
THE DETROIT, THE MOST AGGRESSIVE SHAPE OF DOSNOVENTA. COMPETITIVE, FAST, LIGHT, STIFF, REACTIVE AND VERY UNIQUE
$1,190.00
| S | M | L | |
|---|---|---|---|
| RIDER HEIGHT | 154CM - 170CM | 171CM - 182CM | 183CM - 192CM |
| Seat Tube (Center to Center) | 470 | 510 | 550 |
| Seat Tube (Center to Top) | 510 | 550 | 580 |
| Head tube length | 90 | 110 | 140 |
| Effective top tube length | 505 | 530 | 565 |
| Head tube Angle | 74 | 74 | 74 |
| Seat tube angle | 76 | 76 | 76 |
| Stack (mm) | 468 | 487 | 516 |
| Reach (mm) | 388 | 408 | 436 |
| BB Drop | 41 | 41 | 41 |
| Chainstay Length | 382 | 382 | 382 |
| Bottom Braket | 290 | 290 | 290 |
